열충격시험기

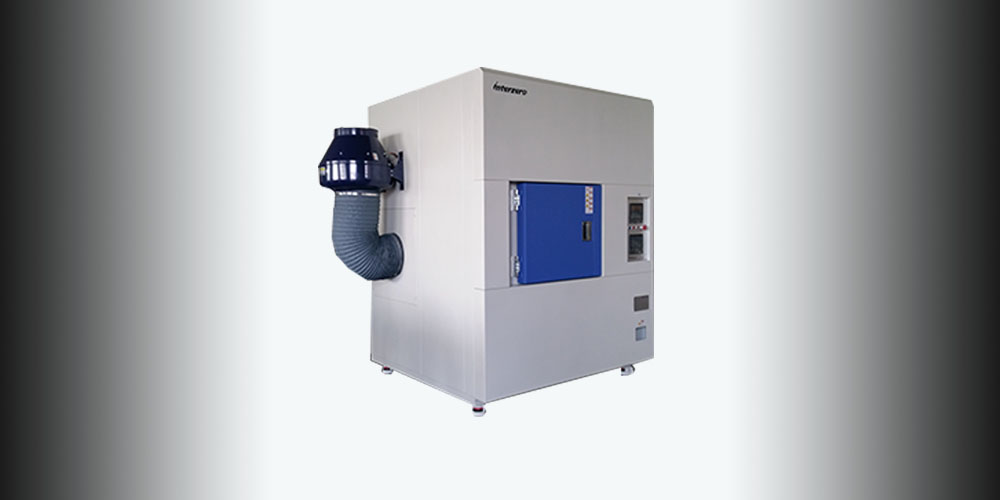

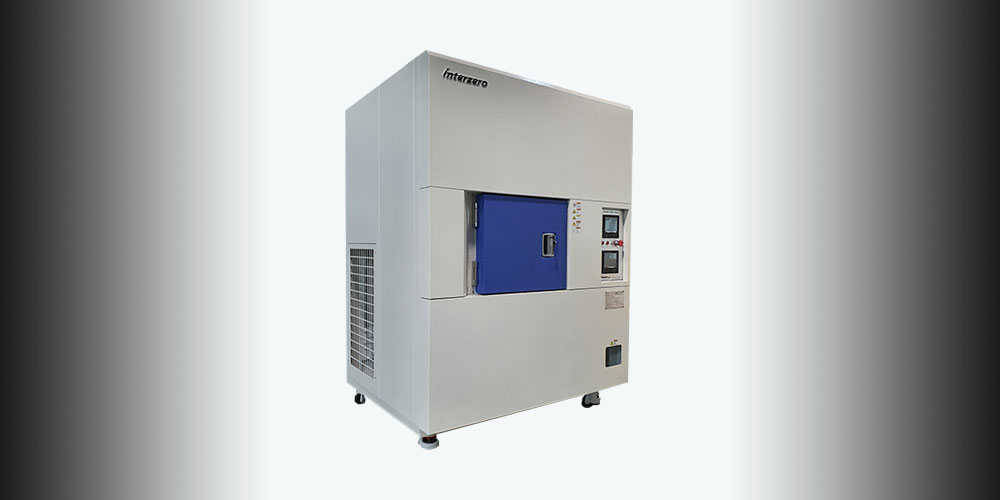

열충격시험기(3존)는 실험실내의 Damper 개,폐에 의해 고온실(+150℃)과 저온실(-50℃)의 열기와 냉기를 실험실내로 유입시켜 빠른시간에 급격한 냉,열충격 상태를 시험하는 장치로써 안정적이며 고정밀의 시험 데이타를 얻을 수 있으며 대화방식의 콘트롤러를 사용하여 편리성을 높였습니다.
상세스펙

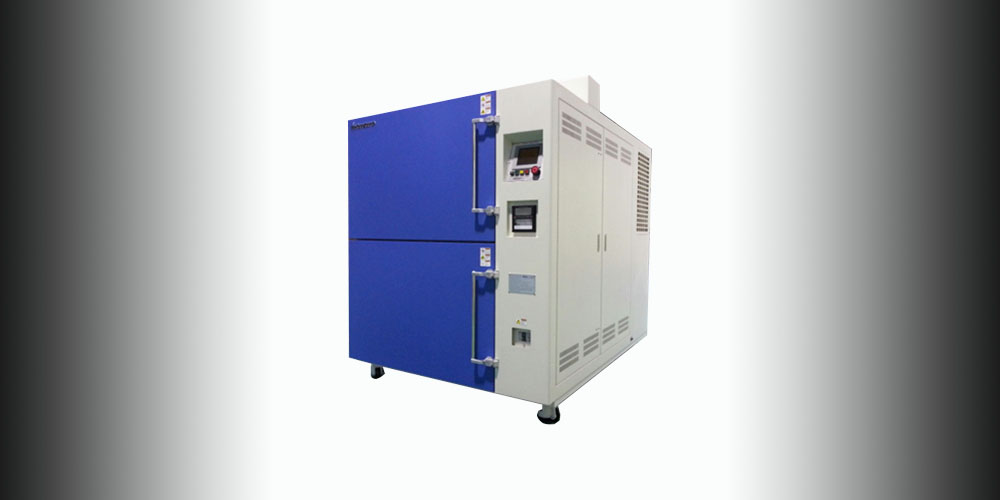

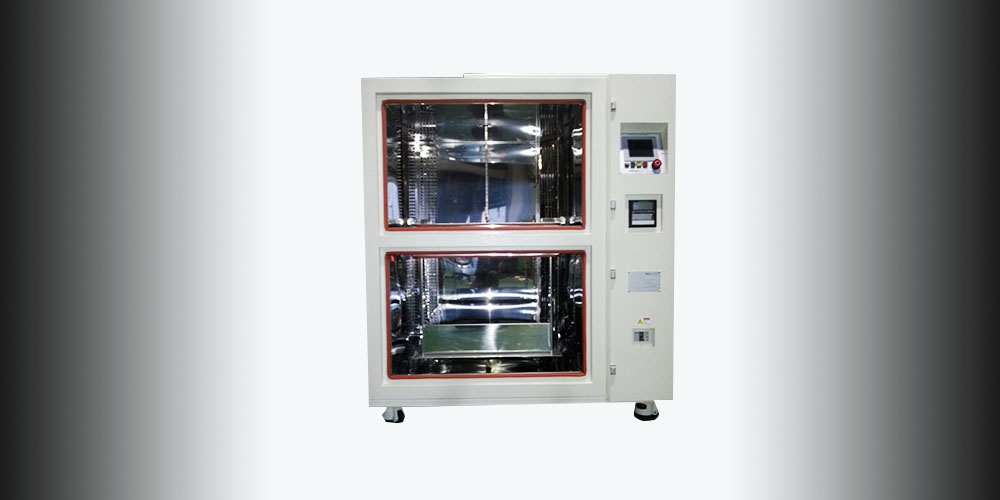

  Thermal Shock Tester ( 2-Zone ) Specification / 열충격시험기 ( 2-Zone )

 Thermal Shock Tester ( 2-Zone ) Serise

 Temperature Range

  Hot Zone

 +70℃ ~ +170℃

  Test Zone

 -50℃ ~ +150℃

  Cold Zone

 -70℃ ~ -10℃

 MODEL

 ITS-32Z

 ITS-42Z

 ITS-52Z

 ITS-62Z

  Dimension

 ( W x D x H )mm

  Internal ( Box )

 300 x 300 x 300

 400 x 400 x 400

 500 x 500 x 500

 600 x 600 x 600

  External

 1390 x 1630 x 1830

 1340 x 1730 x 2030

 1440 x 1830 x 2230

 1540 x 1930 x 2430

  Capacity

 27Liter

 64Liter

 125Liter

 216Liter

  Weight

600Kg

 850Kg

 1000Kg

 1300Kg

  Temperature Fluctuation

 ±0.5℃

  Time

  Preheating

 +20℃ ~ +170℃ ( Within 30Min )

  Precooling

 +20℃ ~ -70℃ ( Within 60Min )

  Recovery

 Within 5min

  Material

  Internal

 18-8 Cr-Ni Stainless Steel Plate( Polish )

 External

 CR Steel Plate ( 아이보리 햄마톤 도장 )

  Insulation

 Polyurethane Foam ( Cold Zone ), Glass Wool ( Hot Zone )

  Refrigeration

  Refrigerator

 Hermatically sealed Compressor

  System

 Mechanical Cascade Refrigeration System ( 이원냉동방식 )

  Capacity

 2HP x 2Unit

 3HP x 2Unit

 5HP x 2Unit

 7.5HP x 2Unit

  Cooler

 Plate Fin Cooler ( Air Cooled Type )

  Dry Heater

  Material

 Nicrome Strip Wire Heater

  Hot Zone Capacity

 4.5KW

 6.6KW

 10.5KW

 15KW

  Cold Zone Capacity

 4.5KW

 6.6KW

 10.5KW

 15KW

  Air Circulation

  Motor

 1/2HP  x 2

 1HP  x 2

 1HP  x 2

 1HP  x 2

  Fan

 4" x 8" ( AL Sirocco )

 4" x 10" ( AL Sirocco )

 5" x 10" ( AL Sirocco )

 5" x 10" ( AL Sirocco )

  Temp. Sensor

 "T" Type ( 3 Set )

  Sample Box Driving Unit

 Air Cylinder

  Test Area load Capacity

 30Kg ( equally distributed load )

  Accessories

 Shelves ( 2Set ),  Casters With Adjusters, Tower Lamp ( LED 3단 )

  Air

 5Kgf/㎠ 이상

  Power Supply

 AC220V  3Φ  4W  50/60Hz,  AC380V  3Φ  4W  50/60Hz

  Max Power

 12.9KW

 19.2KW

 30.1KW

 42.8KW

  Load Current

  AC220V 3Φ

 33.9A

 50.5A

 79.1A

 112.5A

  AC380V 3Φ

 19.6A

 29.2A

 45.8A

 65.1A


 ※ Work Environment : +10℃ ~ +30℃, 85%RH Under



   Thermal Shock Tester ( 3-Zone ) Specification / 열충격시험기 ( 3-Zone )

  Item

 Thermal Shock Tester ( 3-Zone ) Serise

 Temperature Range

  Hot Zone

 +70℃ ~ +170℃

  Test Zone

 -50℃ ~ +150℃

  Cold Zone

 -70℃ ~ -10℃

 MODEL

 ITS-33Z

 ITS-43Z

 ITS-53Z

 ITS-63Z

  Dimension

 ( W x D x H )mm

  Internal ( Test Zone )

 300 x 300 x 300

 400 x 400 x 400

 500 x 500 x 500

 600 x 600 x 600

  External

 1390 x 1630 x 1830

 1340 x 1730 x 2030

 1440 x 1830 x 2230

 1540 x 1930 x 2430

  Capacity

 27Liter

 64Liter

 125Liter

 216Liter

  Weight

 700Kg

 950Kg

 1150Kg

 1500Kg

  Temperature Fluctuation

 ±0.5℃

  Time

  Preheating

 +20℃ ~ +170℃ ( Within 30Min )

  Precooling

 +20℃ ~ -70℃ ( Within 60Min )

  Recovery

 Within 5min

  Material

  Internal

 18-8 Cr-Ni Stainless Steel Plate( Polish )

  External

 CR Steel Plate ( 아이보리 햄마톤 도장 )

  Insulation

 Polyurethane Foam ( Cold Zone ), Glass Wool ( Test Zone ), Glass Wool ( Hot Zone )

  Refrigeration

  Refrigerator

 Hermatically sealed Compressor

 Semi-Hermatically sealed Compressor

  System

 Mechanical Cascade Refrigeration System ( 이원냉동방식 )

  Capacity

 2HP x 2Unit

 3HP x 2Unit

 5HP x 2Unit

 7.5HP x 2Unit

  Cooler

 Plate Fin Cooler ( Air Cooled Type )

 Dry Heater

  Material

 Nicrome Strip Wire Heater

 Hot Zone Capacity

 4.5KW

 6.6KW

 10.5KW

 15KW

 Cold Zone Capacity

 4.5KW

 6.6KW

 10.5KW

 15KW

 Air Circulation

  Motor

 1/2HP  x 2

 1HP  x 2

 1HP  x 2

 1HP  x 2

  Fan

 4" x 8" ( AL Sirocco )

 4" x 10" ( AL Sirocco )

 5" x 10" ( AL Sirocco )

 5" x 10" ( AL Sirocco )

  Temp. Sensor

 "T" Type ( 3 Set )

  Damper Driving Unit

 Air Cylinder

 Test Area load Capacity

 30Kg ( equally distributed load )

  Accessories

 Shelves ( 2Set ),  Casters With Adjusters, Tower Lamp ( LED 3단 )

  Air

 5Kgf/㎠ 이상

  Power Supply

 AC220V  3Φ  4W  50/60Hz,  AC380V  3Φ  4W  50/60Hz

  Max Power

 12.9KW

 19.2KW

 30.1KW

 42.8KW

  Load Current

  AC220V 3Φ

 33.9A

 50.5A

 79.1A

 112.5A

  AC380V 3Φ

 19.6A

 29.2A

 45.8A

 65.1A


  ※ Work Environment : +10℃ ~ +30℃, 85%RH Under
